Raspberry Pi 1 - Model A+
Raspberry Pi 1 - Model A+ Raspberry Pi 1 - Model A+ Raspberry Pi 1 - Model A+
Click images to enlarge

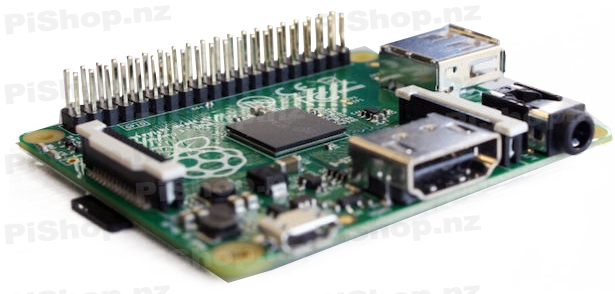

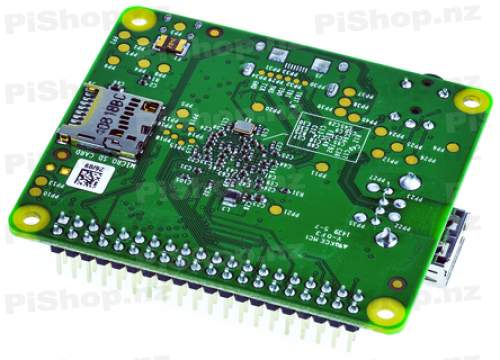

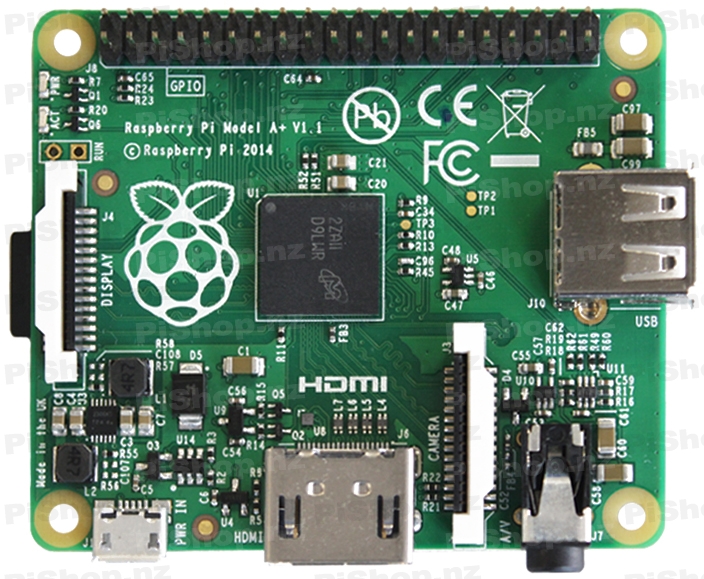

Raspberry Pi 1 | Model A+ | 256MB Ram
$44.85
You may also need..
RPI-HEATSINK
3pc Heat Sink Set for Raspberry Pi
$5.75

Raspberry Pi A+ | Raspberry Pi 1 Model A+ with 256MB Ram

The Raspberry Pi A+ is a credit-card sized computer board that plugs into a TV and a keyboard. It’s a miniature ARM-based PC which can be used for many of the things that a desktop PC does, like spreadsheets, word-processing and games. It also plays High-Definition video. The Raspberry Pi Model A+ board is supplied as board only, and come without operating system, SD card, power supply, keyboard, case or cables.

Read the Raspberry Pi quick start guide HERE

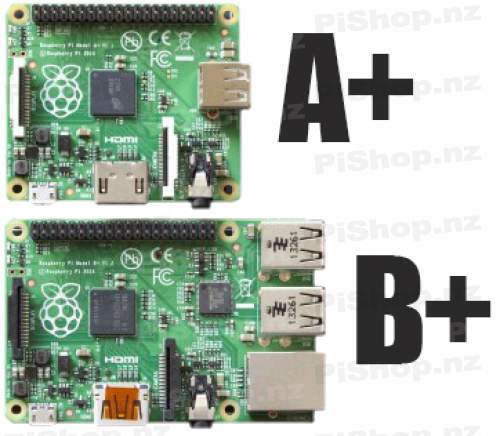

What's the difference from the "Raspberry Pi 1 - Model B+"?
• Smaller
• Consumes less power
• Cheaper
• Perfect for building IOT Devices
• 1 USB Port vs 4 USB Ports (Can use a USB Hub)
• No Ethernet Port (Can use a USB Ethernet Adapter)
• Half the Ram: 256MB Ram vs B+'s 512MB Ram

Features
• Video/Audio Out via 4-pole 3.5mm connector, HDMI, or Raw LCD (DSI)
• 1 x USB2.0 Port (Can be extended using a USB Hub)
• 40-pin GPIO Header
• Now smaller than a credit card
• 15-pin CSI Camera Interface Connector
• 256MB Ram
• Latest Model A+
• Official Board
• Perfect for embedded systems / projects
• Supports Debian GNU/Linux, Fedora, Arch Linux, RISC OS and More!

Specifications
• Broadcom BCM2835 SoC
• 700 MHz ARM1176JZF-S core CPU
• Broadcom VideoCore IV GPU
• Storage: microSD
• Power Requirements: 5V @ 200 mA via MicroUSB or GPIO Header
• Low-Level Peripherals:
     • 27 x GPIO
     • UART
     • I2C bus
     • SPI bus with two chip selects
     • +3.3V
     • +5V
     • Ground

Dimensions
• Length: 65mm
• Width: 65mm
• Height: 12mm
• Weight: 23g

You may also need
RPI-HEATSINK - 3pc Heat Sink Set
RPI-PSU-3 - 5.1V 2.5A Power Supply
VCOM CG511-1.8M - 1.8M HDMI Cable
RPI-KEYB-1 - Wireless keyboard / mouse
RPI-WIFI-1 - Wireless B/G/N Dongle
