RPI-WOLFSON
RPI-WOLFSON
Click images to enlarge

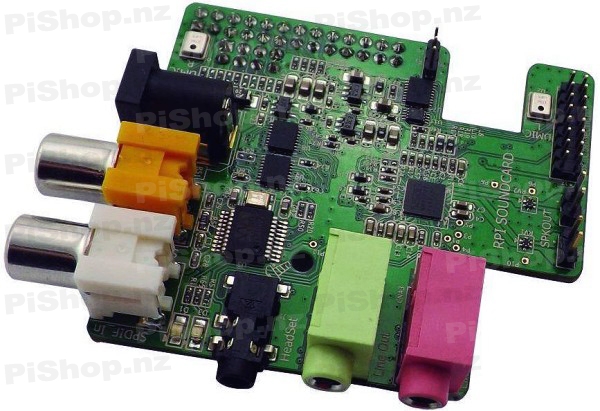

Wolfson Pi Audio Card for Raspberry Pi

RPI-WOLFSON | Wolfson Pi Audio Card for Raspberry Pi

The Wolfson Audio Card, produced in collaboration with Wolfson, the premier mixed-signal semiconductor and audio solutions company, offers Raspberry Pi users similar flexibility to a PC soundcard to capture audio alongside their camera, and experiment with stereo digital capture and playback.

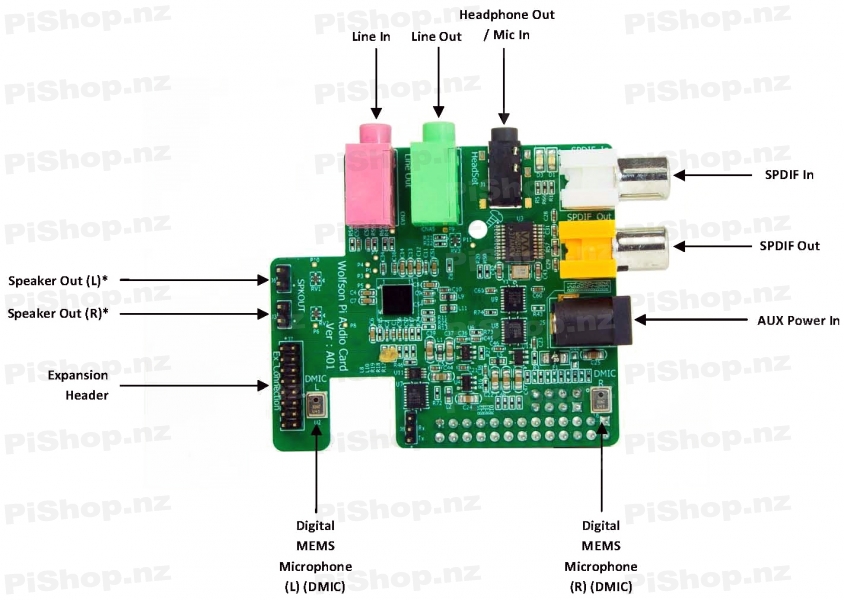

Features
• 3.5 mm jack (4-pole) for a headset/boom mic combination for gaming or VoIP applications
• Capable of rendering HD Audio, at 24-bit, 192kHz
• On-board MEMS microphone
• 3.5 mm jack stereo line output for connection to devices such as external stereo amplifiers or powered speakers
• S/PDIF input and output
• On-board class D power amplifier for external speakers, with connection to external power source if needed.
• Small pin header for extra functions if they are low cost, already on-chip, and don't require any further components
• Raspberry Pi form factor
• Board Version: A02

Downloads, Tutorials and Guides
Getting Started
Sofware Download
User Manual

Compatible With
Raspberry Pi Model A+ (Does not sit ontop due to new layout. Need to use GPIO extender or cable)
Raspberry Pi Model B

Raspberry Pi Model B+ (Does not sit ontop due to new layout. Need to use GPIO extender or cable)
