Raspberry Pi Zero 2 W - Quad Core / 512MB Ram

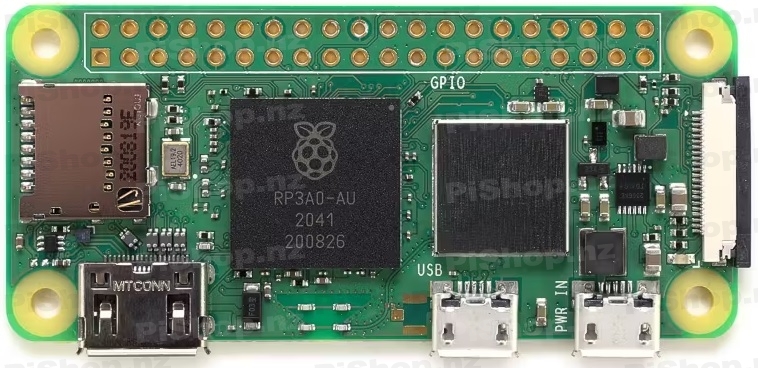

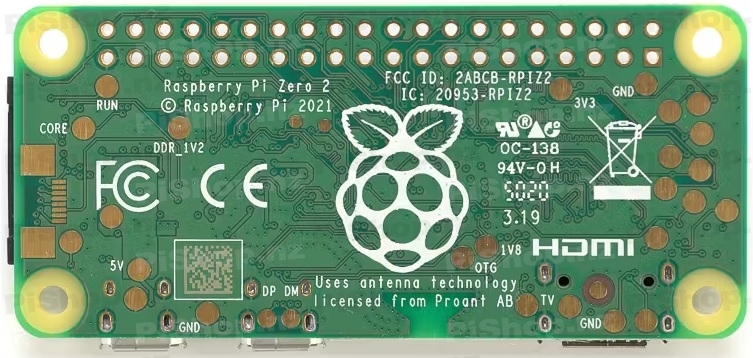

Introducing the miniature Raspberry Pi Zero 2 W

This ultra-slim Raspberry Pi board is the smallest form factor Raspberry Pi on the market today at only 65mm long by 30mm wide and 5mm deep. The board supports mini connectors to save on space, and the 40pin GPIO is unpopulated providing the flexibility to use only the connections your solution requires.

Read the Raspberry Pi quick start guide HERE

Features and Specifications

• Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
• Memory 512MB LPDDR2
• Unpopulated 40pin GPIO for added flexibility
• 2.4GHz 802.11 b/g/n wireless LAN
• microSD card slot
• 1x Micro USB OTG Data port and Mini HDMI Port
• HDMI Interface (Mini HDMI port)
• Bluetooth 4.2
• CSI-2 Camera Connector
• Input Power 5V DC 2.5A

Includes
• Raspberry Pi Zero 2 W board

Compatible
• Raspberry Pi Zero Case

Dimensions
• Length: 65mm
• Width: 30mm
• Height: 5mm
