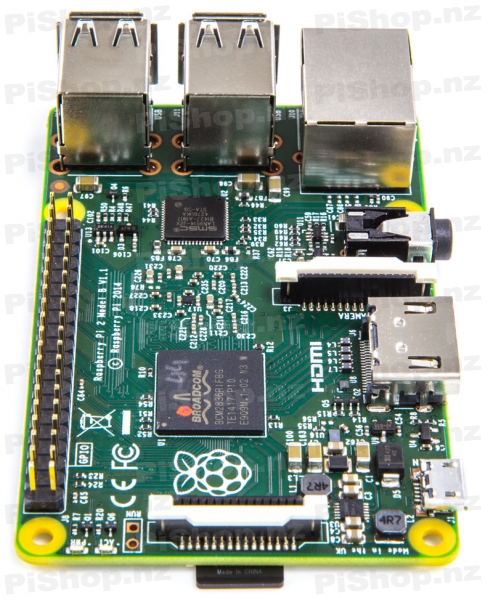

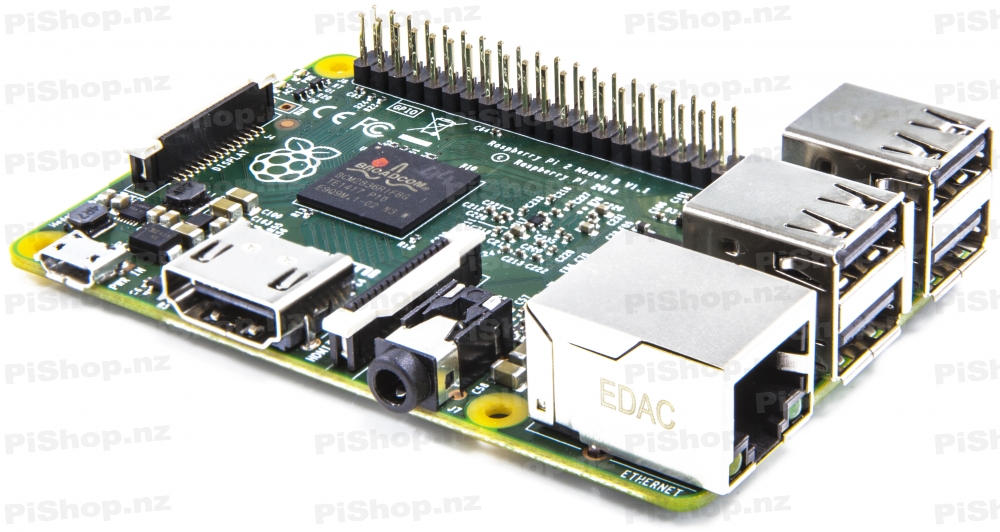

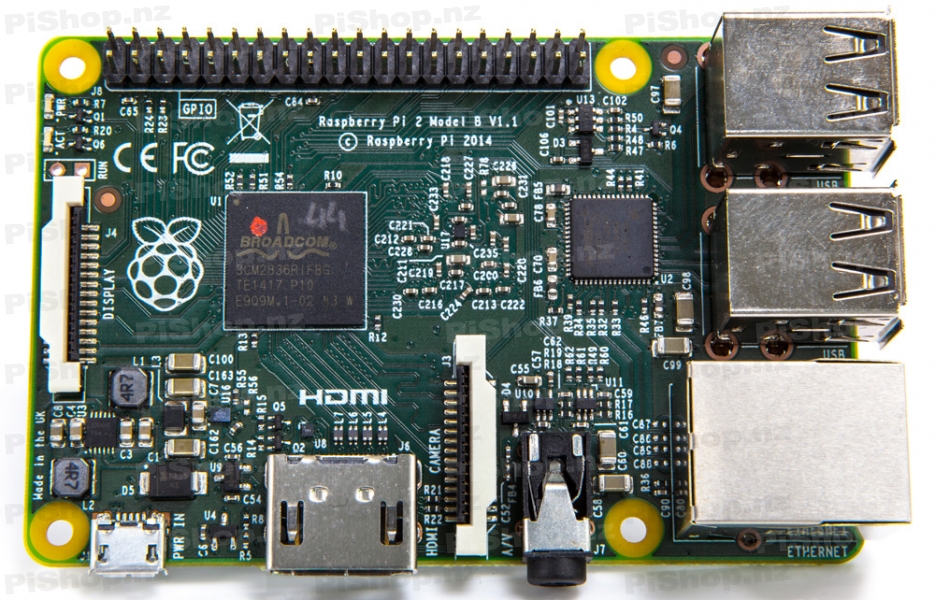

Raspberry Pi 2 - Model B
Raspberry Pi 2 - Model B Raspberry Pi 2 - Model B Raspberry Pi 2 - Model B
Click images to enlarge
Raspberry Pi 2 | Model B | 900MHZ Quad Core
You may also need..
RPI-HEATSINK
3pc Heat Sink Set for Raspberry Pi
$5.75

Raspberry Pi 2 Model B with 900MHz Quad Core and 1GB Ram

The Raspberry Pi 2 Model B is the latest 900MHZ Quad Core 1GB Ram credit-card sized SBC (single board computer). It’s a miniature ARM-based PC which can be used for many of the things that a desktop PC does, like spreadsheets, word-processing and games. It also plays High-Definition video. The Raspberry Pi 2 Model B board is supplied as board only, and come without operating system, SD card, power supply, keyboard, case or cables - but these are all available from us!

Read the Raspberry Pi quick start guide HERE

What's difference from the "Raspberry Pi 1 - Model B+"?
• 6x The Performance (900MHz Quad Core vs the B+'s 700MHz single core)
• Double The Ram (1GB Ram vs the B+'s 512MB Ram)
• ARMv7 processor vs the B+'s ARM11 - a wider range of possible OS's (including Windows 10!)

What's the same as the "Raspberry Pi 1 - Model B+"?
• Everything else!
• Exact same size and layout as the B+ - so most B+ parts (cases, add-on boards, etc) still fit.
• Backwards Compatible: Most exisitng software for the B+ will still work on this latest model

Features
• 900MHz Quad Core Processor
• Video/Audio Out via 4-pole 3.5mm connector, HDMI, or Raw LCD (DSI)
• 4 x USB2.0 Ports with up to 1.2A output
• 10/100 Ethernet (RJ45)
• 40-pin GPIO Header
• 15-pin CSI Camera Interface Connector
• Size of a credit card
• 1GB LPDDR2 SDRAM
• Latest Raspberry Pi 2 Model B V1.1 Board
• Official Board

Specifications

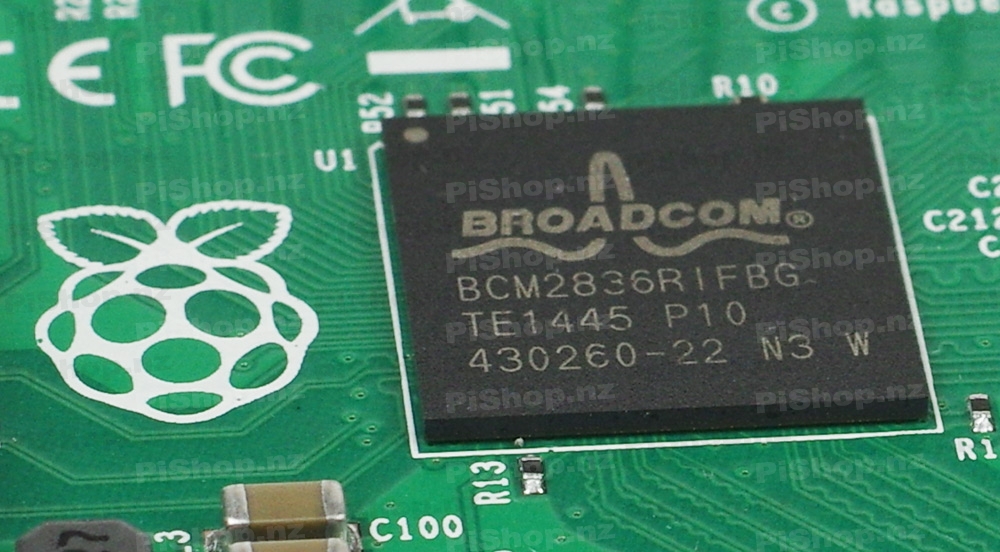

• Broadcom BCM2836 SoC
• 900MHz Quad-core ARM Cortex-A7 CPU
• Broadcom VideoCore IV GPU
• Storage: microSD
• HDMI (rev 1.3 & 1.4)
• Minimum Power Requirements: 5V @ 700 mA via MicroUSB or GPIO Header
• Low-Level Peripherals:
     • 27 x GPIO
     • UART
     • I2C bus
     • SPI bus with two chip selects
     • +3.3V
     • +5V
     • Ground

Dimensions
• Length: 85mm
• Width: 56mm
• Height: 17mm

You may also need
RPI-HEATSINK - 3pc Heat Sink Set
Black / Clear / Flirc - Raspberry Pi Case
RPI-PSU-2 - 5V 2A Power Supply
RPI-8GB-NOOBS - 8GB SD Card with NOOBS
RPI-8GB-KODI - 8GB SD Card with KODI
VCOM CG511-1.8M - 1.8M HDMI Cable
RPI-KEYB-1 - Wireless keyboard / mouse
RPI-WIFI-3 - Wireless B/G/N Dongle
USBMICRO2 - USB Micro Inline On/Off Switch
