RPI-PITFT | Adafruit PiTFT Mini 2.8" TFT + Touchscreen Kitset for Raspberry Pi

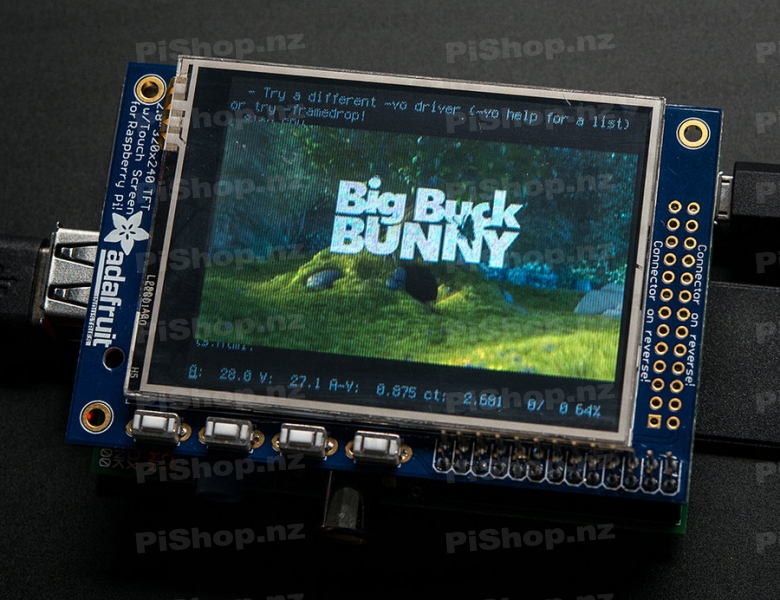

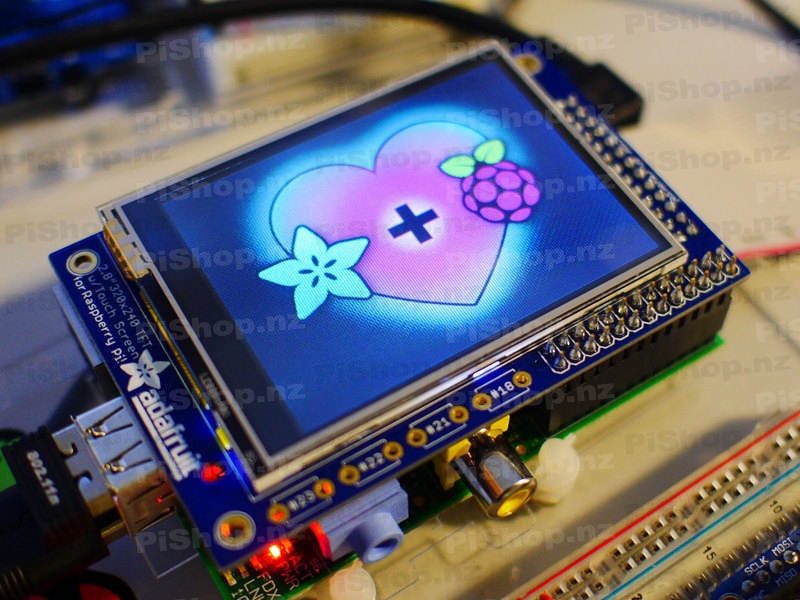

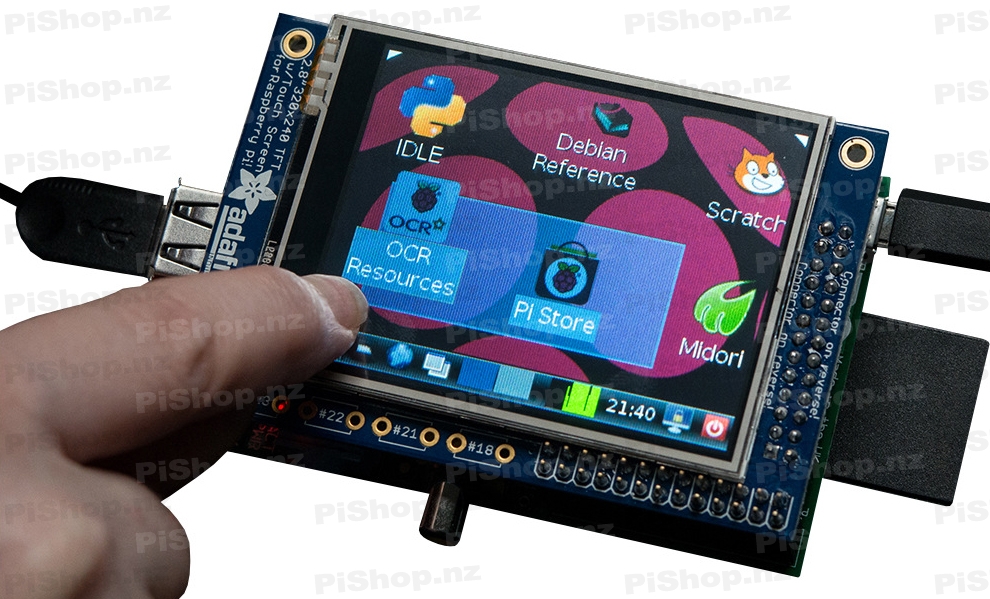

Is this not the cutest little display for the Raspberry Pi? It features a 2.8" display with 320x240 16-bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!
Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other GPIO are unused. Since we had a tiny bit of space, there's 4 spots for optional slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface.For example, you can use one as a power on/off button. See below for the link to get the optional tact switches, they're not included.
This version comes as a mini-kit, with a 2x13 extra-tall female header (to connect the plate to the Pi) and a 2x13 male header that can be used to connect an IDC cable or cobbler from the side. The photos above also show the optional installed slim tactile buttons. The tactile buttons are not included with this kit. Some basic soldering is required to install the headers.
Features
• 2.8" Touch-screen display with 320x240 16-bit color pixels
• Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24
• Sits perfectly on top of the Raspberry Pi
• Can take 4x tactile switches (not included)
• Kitset (Requires assembly and soldering of components)
Compatible With
• Raspberry Pi Model B
• Raspberry Pi Model B+ (Does not sit ontop due to new layout. Need to use GPIO extender or cable)
Downloads, Tutorials and Guides
• Assembly & Usage Instructions
|
