RPI-PIFACE | PiFace Digital Expansion Board for Raspberry Pi
PiFace Digital is designed to plug on to the GPIO of your Raspberry Pi, allowing you to sense and control the real world. With PiFace Digital you can detect the state of a switch, for example from a door sensor, a pressure pad or any number of other switch types. Once this state has been detected, you can write your own software for the Raspberry Pi that determines how to respond to that switch state. You can drive outputs to power motors, actuators, LEDs or anything else you can imagine!

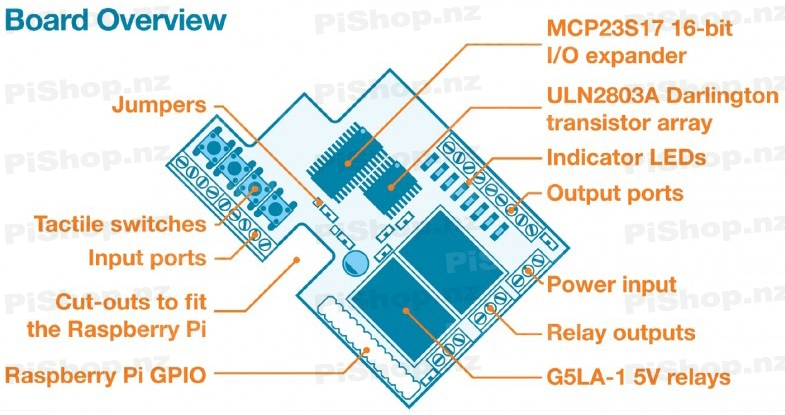

Features
• Plugs directly onto the Raspberry Pi GPIO socket

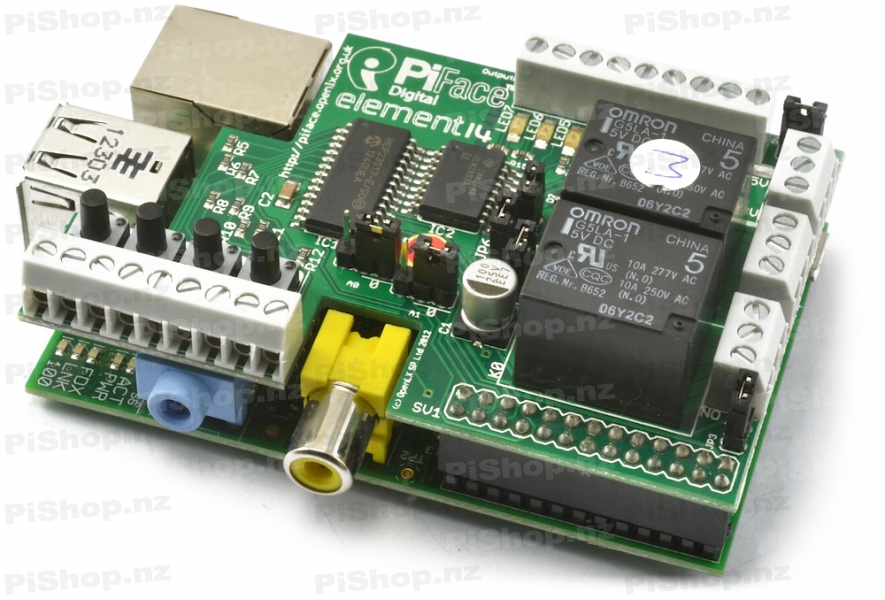

• Fits Directly over the Raspberry Pi and within the Raspberry Pi's footprint
• 2 Changeover Relays
• 4 Tactile Switches
• 8 Digital Inputs
• 8 Open-Collector OutPuts
• 8 LED Indicators
• Easy to program in Python, Scratch and C
• Graphical Emulator and Simulator
• Relays can be used to switch voltages up to 20V (Max) or currents up to 5A (Max)
Applications
• Experiments with Scratch
• Light Gates
• Detectors and Alarms
• Birdbox Sensor
• Simon (Game)
• Game Controllers
