RPI-CAM-8MP
RPI-CAM-8MP
Click images to enlarge

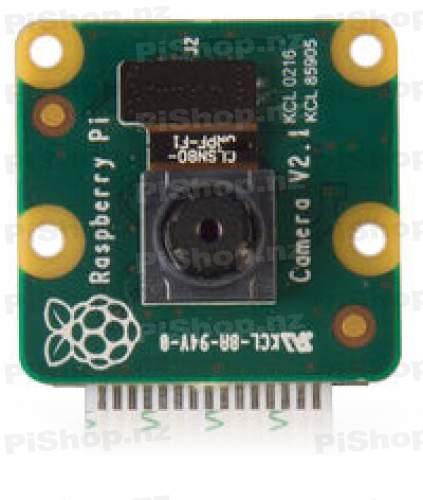

Official Raspberry Pi 8MP Camera Board
$44.85
You may also need..
RPI-RIBBON-2
Raspberry Pi Camera / Display 100cm Ribbon Cable
$8.05

RPI-CAM-8MP | Official Raspberry Pi 8MP Camera Board

The Raspberry Pi Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

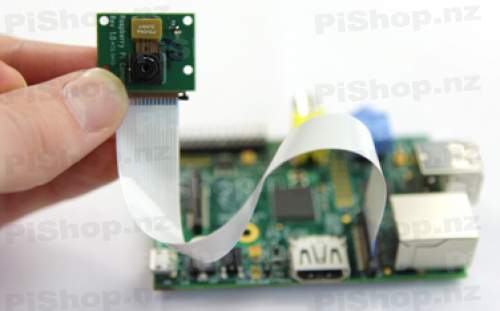

The board itself is tiny, at around 25mm x 20mm x 9mm. It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

The sensor itself has a native resolution of 8 megapixel, and has a fixed focus lens onboard.
In terms of still images, the camera is capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.


Features
• Small board size: 25mm x 20mm x 9mm
• A 8MP (3280 × 2464 pixels) Sony IMX219 sensor in a fixed focus module
• Support 1080p30, 720p60 and 640x480p60/90 video record

Kit Contents
1x Camera Module
• 1x Ribbon Cable

Compatible With
Raspberry Pi 1 Model A+
Raspberry Pi 1 Model B
Raspberry Pi 1 Model B+

Raspberry Pi 2 Model B
Raspberry Pi 3 Model B

* Camera wihout Infrared filter also availabe HERE *



All prices in NZD and include GST
Raspberry Pi is a trademark of the Raspberry Pi Foundation
