ODROID N2 | 6-Core Single Board Computer with 2GB Ram
ODROID-N2 is a new generation single board computer that is more powerful, more stable, and faster performing than N1. The main CPU of the N2 is based on big.Little architecture which integrates a quad-core ARM Cortex-A73 CPU cluster and a dual core Cortex-A53 cluster with a new generation Mali-G52 GPU.
Thanks to the modern 12nm silicon technology, the A73 cores runs at 1.8Ghz without thermal throttling using the stock metal-housing heatsink allowing a robust and quiet computer. The CPU multi-core performance is around 20% faster and the GPU is 10% faster than the N1.
The N2’s DDR4 RAM is running at 1320Mhz with 1.2volt low power consumption.
The large metal housing heatsink is designed to optimize the CPU and RAM heat dissipation and minimize throttling.
The CPU is placed on the bottom side of the PCB to establish great thermal characteristics.

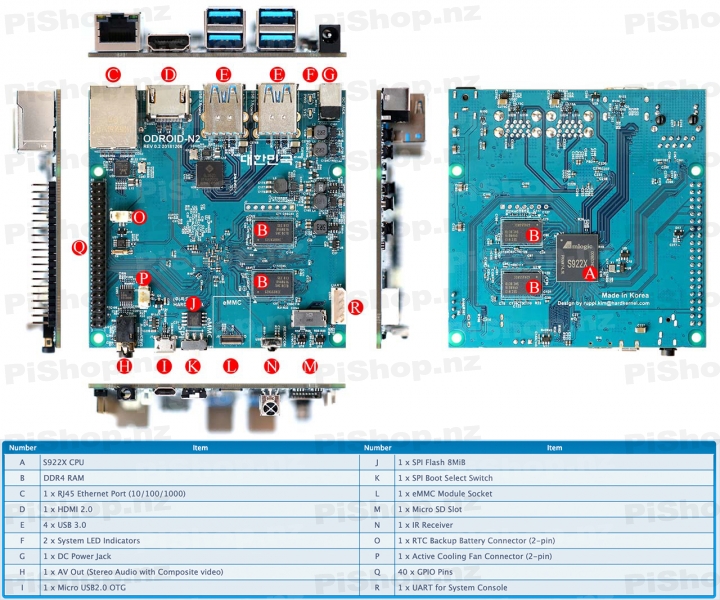

Features
• Amlogic S922X Quad-core Cortex-A73 (1.8Ghz) and Dual Core Cortex-A53 (1.9Ghz)
• Mali-G52 GPU with 6x Execution Engines (846Mhz)
• 2Gbyte DDR4 SDRAM
• Gigabit Ethernet
• HDMI 2.0 4K/60Hz display
• 4x USB 3.0 Ports
• 1x Micro USB 2.0 OTG Port
• Large Passive Heatsink Included
• eMMC & microSD Card Slots
• Composite Audio / Video Output
• Optical SPDIF Optical Output

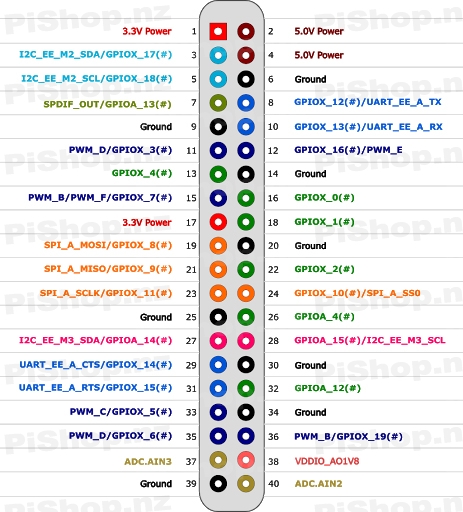

• 40 Pin GPIO Header
• Built-in RTC (Real Time Clock)
• Infrared(IR) Receiver
• Official Board
