RPI-LCD-RGB-A | Assembled Adafruit I2C RGB Negative 16x2 LCD + Keypad

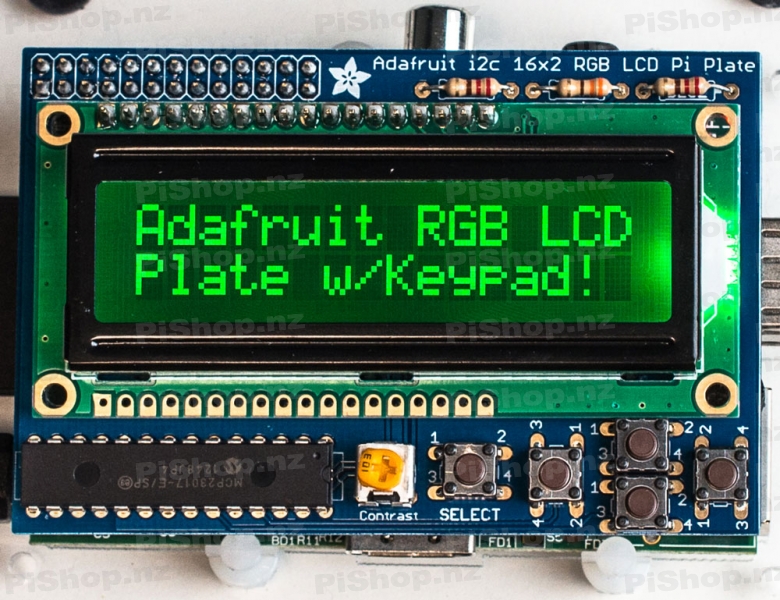

This new Adafruit Pi Plate makes it easy to use an RGB 16x2 Character LCD. We really like the RGB Character LCDs we stock in the shop. Other LCDs do require quite a few digital pins, 6 to control the LCD and then another 3 to control the RGB backlight for a total of 9 pins. That's nearly all the GPIO available on a Pi!
With this in mind, we wanted to make it easier for people to get these LCD into their projects so we devised a Pi plate that lets you control a 16x2 Character LCD, up to 3 backlight pins AND 5 keypad pins using only the two I2C pins on the R-Pi! The best part is you don't really lose those two pins either, since you can stick i2c-based sensors, RTCs, etc and have them share the I2C bus. This is a super slick way to add a display without all the wiring hassle.
New, we've updated this Pi plate so the buttons on on the right side, which makes it a little more mechanically stable.
This pi plate is perfect for when you want to build a stand-alone project with its own user interface. The 4 directional buttons plus select button allows basic control without having to attach a bulky computer.
The plate is designed for both Revision 1 and Revision 2 Raspberry Pi's. It uses the I2C (SDA/SCL) pins. We have a special xtra-tall 26-pin header so the plate sits above the USB and Ethernet jacks.
You can also easily query the 5 keypad buttons to get input through the library, so you get extra buttons without using any more pins. The buttons are automatically de-bounced inside the library.

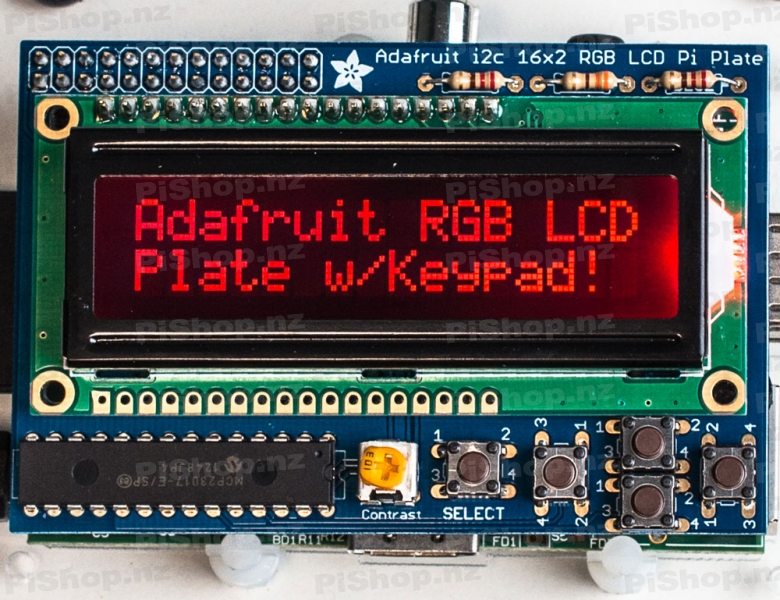

At this time, the code and plate can control the RGB backlight of our character LCDs by turning each LED on or off. This means you can display the following colors: Red, Yellow, Green, Teal, Blue, Violet, White and all off. There is no support for PWM control of the backlight at this time, so if you need to have more granular control of the RGB backlight to display a larger range of colors, this plate can't do that (the I2C expander does not have PWM output).
Features
• Assembled! - Ready to plug and play :)
• Plug and play with any Raspberry Pi
• Uses only the I2C (SDA/SCL) pins
• Comes with a 16x2 RGB NEGATIVE LCD
• This board/chip uses I2C 7-bit address 0x20.
• Sits perfectly on top of the Raspberry Pi
Downloads, Tutorials and Guides
• Usage Instructions
* Able to assemble it yourself? Check out the cheaper KITSET product
|
