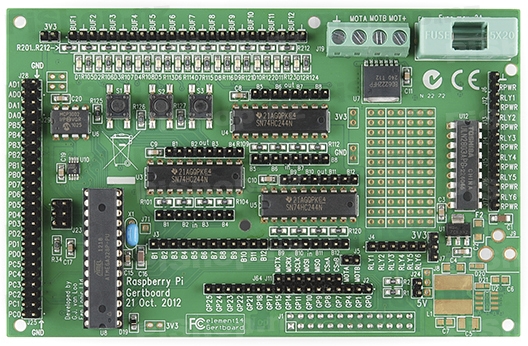

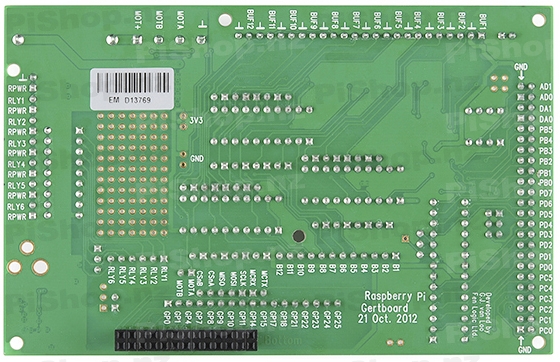

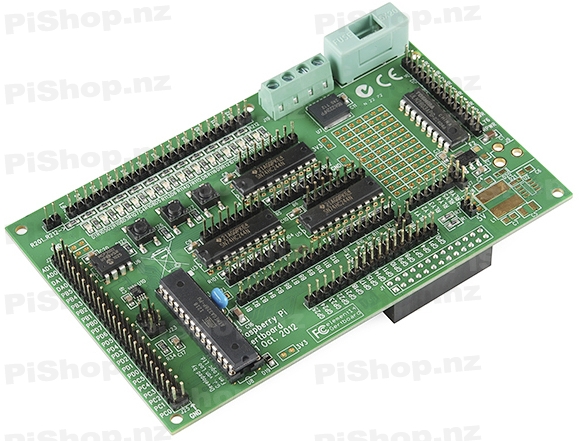

RPI-GERTBOARD | Gertboard Expansion Board for Raspberry Pi
Gertboard is the ideal add-on for Raspberry Pi. Designed by Gert van Loo, it is a flexible experimenter board that plugs directly into your Raspberry Pi, and out into the physical world, allowing you to detect and respond to external physical events. Detect and output analogue voltages. Drive powerful motors. Detect switch presses. Illuminate LEDs and drive relays. Jumper cables allow you to hook up different parts of the circuit in many different ways, allowing total flexibility. All controlled by your own Raspberry Pi.
Plug the Gertboard into the GPIO header on your Raspberry Pi and you're ready to start detecting and responding to events in the real world. Jumper wires (called "straps") and pin jumpers are used to reconfigure the board in any number of ways. Whether you need to detect button presses or analog voltages, control motors or relays, the Gertboard is the ultimate tool for exploring the Raspberry Pi's full I/O potential!

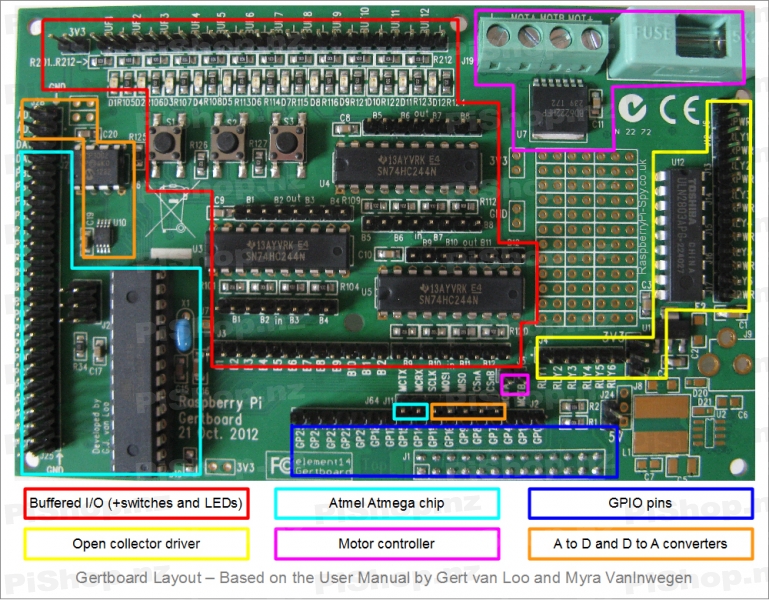

Features
• Plugs directly onto Raspberry Pi GPIO socket
• Motor controller, capable controlling a motor bi-directionally, delivering 18V and 2A maximum
• Dual-channel D-to-A converter, 8-bit
• Dual-channel A-to-D converter, 10-bit
• Onboard Atmel ATmega328 MCU for running off-board programmes which are written,
compiled and uploaded to Gertboard from Raspberry Pi
• 6 x Open Collector Outputs
• 12 x LED Indicators
• 3 x Momentary Push Switches

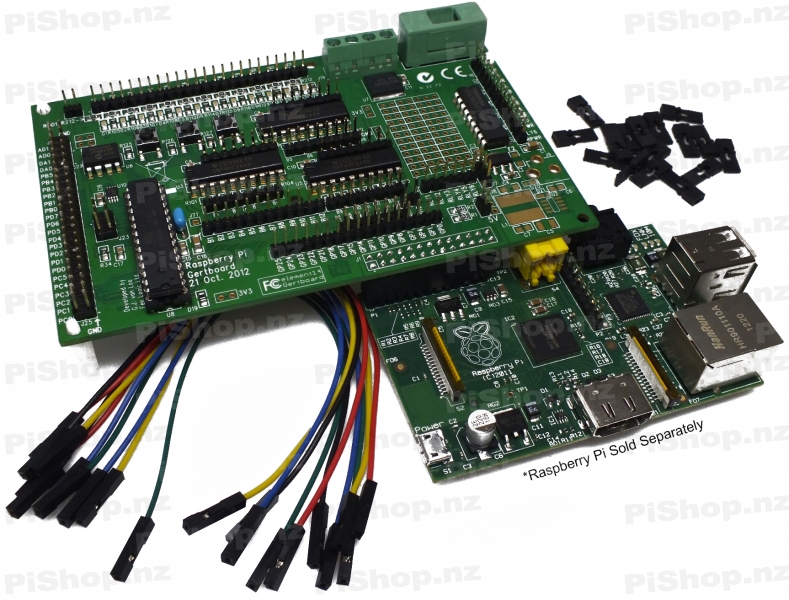

Kit Contents
• 1x Gertboard Add-on Board

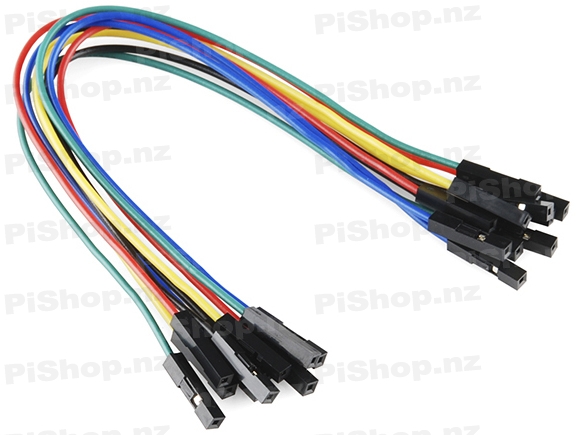

• 10x Female to Female Jumper Wires

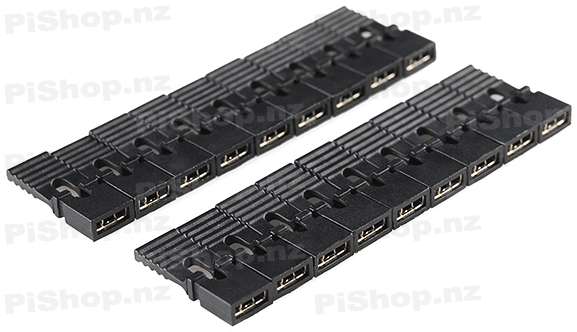

• 8x On board Jumper Clips

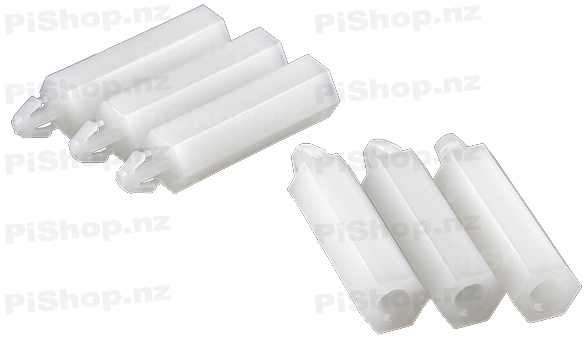

• 6x Plastic Stand Feet
• 1x Software CD (Open Source ARM Cortex M Dev Tools)
